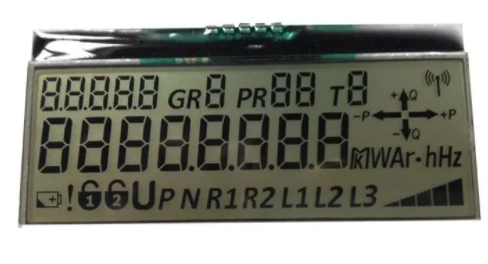

17 Digits 7 Segment Custom Lcd Module , Metal Pin Transflective Lcd Display Cog I2C Serial Energy Meter
Product Details
| Type: | STN Display |
| Polarizer Mode: | Transmissive |
| Display Mode: | Positive |
| Viewing Angle: | 12 O'clock |
| Connector: | Pin / Zebra |
| Driving Condition: | 5.0 V |
Product Description
| Applicaion | Energy lcd module |
| Display content | 17datas +8 decimal +33 DOS Prompt |
| operate voltage: | 2.4~5.5V |
| operate current: | <18uA(3.0V) |
| Driving mode: | 1/3BIAS,1/4DUTY |
| character high: | 8.7mm,5.5mm |
| environment relative temperature: | <85% |
| viewing angle: | 6:00 |
| Display mode: | Transflective positive |
| Interface way: | serial |
| operate temperature: | -40~+70℃ |
| storage temperature: | -50~+80℃ |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
| Warranty | 12 moths free, payed warranty lifttime |
| Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 12 days for available designs,Customized: 35~40 days |
Display Specifications: Utilizes a 17-bit 7-segment custom liquid crystal module, capable of displaying a large amount of digital information and accurately presenting various parameters of electrical energy, such as cumulative electricity, real-time power, peak-valley electricity, etc.
Display Type: Typically an FSTN (Fringe Stacked Thin Film Compensation) liquid crystal display, featuring wide viewing angles and high contrast ratio. It can clearly display data at different angles.
Pin and Connection: Equipped with metal pins, with a gear design, facilitating reliable connection with the circuit board. It also supports the I2C serial communication interface, enabling efficient data transmission with the main control chip of the electricity meter.
Transparency Characteristics: Has transparency function. Some products use transreflective polarizing films. Under external light, it can display using natural light. Without light, it can clearly display the content through backlight. The backlight color is mostly white, with low power consumption and good display effect.
Electric Meter Functions:
Measurement Principle: Collects voltage and current signals in the line in real time through internal voltage and current sensors. Processed by the electricity meter chip, it calculates the electricity consumption value, capable of accurately measuring active and reactive electricity, etc.
Communication Function: Supports the I2C serial communication protocol, allowing data interaction with external devices, such as transmitting electricity data to a microcontroller or other main control devices, facilitating remote meter reading and electricity monitoring functions.
Intelligent Features: Some electricity meters have time-of-use rate function. Based on different time periods' electricity price policies, it measures electricity consumption in different periods, helping users arrange their electricity usage time reasonably and reduce electricity costs.
Product Applications
Power Metering: Primarily used for electricity measurement in residential, commercial, and industrial settings, providing users with accurate electricity consumption data as the basis for electricity bill settlement.
Smart Grid: It is an important component of the smart grid. It can communicate with other devices in the power grid to achieve real-time data interaction, helping power companies monitor the grid, control loads, etc., and improving the operational efficiency and reliability of the grid.
Energy Management: Users can use the data provided by the electricity meter to understand their electricity usage habits and energy consumption situation, thereby taking corresponding energy-saving measures to achieve rational and efficient management of energy.
Industrial Automation: In industrial production, it can be used to monitor the power consumption of equipment, providing data support for enterprises' energy cost accounting, production efficiency analysis, etc., helping enterprises optimize production processes and reduce production costs.
